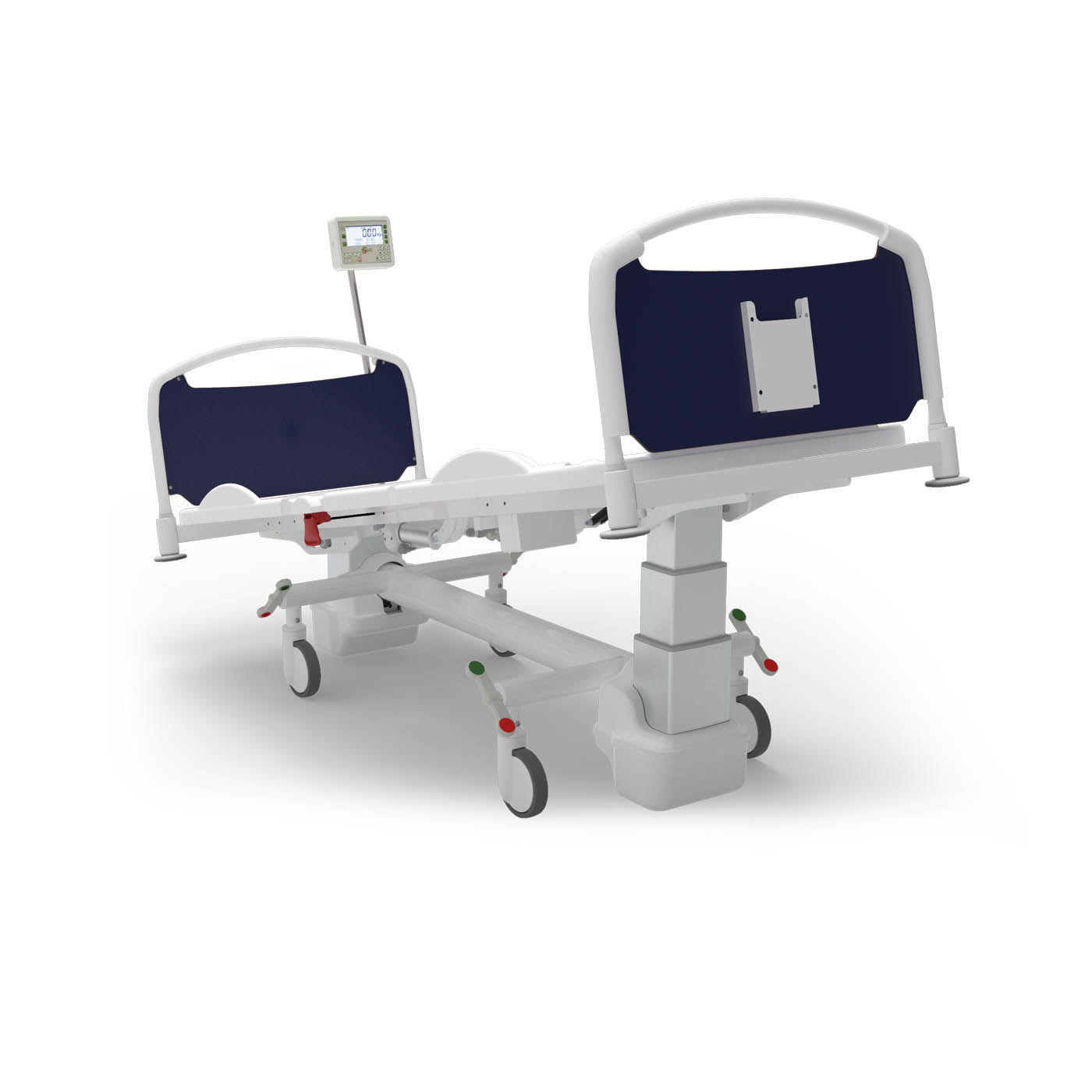

Rubens

Description

Frequent usage

Dialysis
Hospitalization
Semi-intensive care

La fiche technique en français sera disponible sous peu

Benefits

Weighing system:

• Rubens bed has an integrated weighing system, metrologically approved and at the top of accuracy, compliant to directive NAWI 2014/31/EU;
• LCD digital display with 180° digital angle, easily readable even from 20 meters;
• Automatic triple scale display:
  • a) with a max load capacity of 200kg automatic displaying of the minimal division of 20g up to 60kg, 50g up to 150kg and of 100g up to 200kg;
  • b) with a max load capacity of 300kg automatic displaying of the minimal division of 20g up to 60kg, 50g up to 150kg and of 100g up to 300kg;
• Data transmission RS232 or LAN 10/100;
• Compliance with the more common management softwares in use in hospitals with remote data acquisition;
• IP44 display;
• Anti-blackout function for weight data retention
• Long-life external emergency battery;
• Tare weight subtraction before the treatment and during the treatment;
• Manual and automatic tare function;
• Weighing system made out with electronic parts manufactured in Italy;
• The LCD display allows to keep the following parameters visible:
  • hour; weight of the patient; inserted tare weight; inserted or removed weight; weight reduction routine; countdown for weight reduction routine; max load; weight / date / therapy’s starting time; motors movimentation; scale stabilization; weight reduction alarm; bed exit alarm; alert for programmed maintenance;
• Buttons for the movement of the device located on the display;
• Stainless steel load cells with a max load of 1000kg and an overload capacity of 2000kg.

Bed:

• Reinforced frame in stainless steel. It is painted in thermosetting and antibacterial epoxy paint.
• Low voltage spline motors.
• Total absence of mechanism and leverism underneath the bed surface for an efficient sanification.
• Bed sections are covered in thermoformed removable ABS easy to sanificate.
• Ergonomic patient surface.
• Emergency power supply system by rechargeable batteries. 10 cycles duration.
• Lightweight, sturdy and easily removable Head/foot panels.
• Clearance suitable for patient hoists.
• Easy access to clean the floor underneath the bed.
• Patient surface height 47cm. High performing with telescopic height adjustment columns and integrated scale system.
• High load wheels allow easy movement even while the patient is on the bed.
• Side barrier predisposition.
• Any parts or component of the bed are subject to wear and tear.
• Absence of parts that need to be greased.
• Customizable scale bed.
• Latex free.
• Phtalates free.

Standard configuration

• 4 Sections patient surface with 3 joints covered in thermoformed ABS covers, washable and removable.
• Epoxy painted.
• Motorized back section 0-70°.
• Motorized femoral section 0-25° (approx.).
• Movements of the leg section by gas spring, synchronized with the leg section 0-35°.
• Height adjustable through motorized columns.
• Trendelenburg.
• Reverse Trendelenburg.
• Quick release of the back section for CPR, equipment code AC8L.
• Low voltage spline motors.
• Emergency battery, equipment code AC17L.
• Head and foot boards in thermoplastic material with removable HPL panel, equipment code AC65.
• Head and foot panels entirely in thermoplastic with predispositon for customizable vinyl stickers, accessory code AC65/1. (a safety lock is available for both models of panels – accessory code AC121).
• No.4 bumpers.
• Cable support – equipment code AC50L.
• Equipotential node.
• Braking device on two bars with directional system and non-marking wheels. Activated by bilateral pedals, equipment code AC7L1G.
• 10 buttons handset.
• Handset’s inhibition key, equipment code AC34L.
• Predisposition for side rails – equipment code AC21/S.
• Integrated weighing system with manual and automatic tare function and weight reduction.
